Model
Rated power KW
Rated RPM
Rated torque Nm
Driver
60ST-02030
0.2
3000
0.637
ST-400A
60ST-04030
0.4
1.27
60ST-06030
0.6
1.91
ST-800A
80ST-07530
0.75
2.39
80ST-07320
0.73
2000
3.5
80ST-10025
1.0
2500
4.0
ST-1500A
110ST-12030
1.2
110ST-15030
1.5
5.0
110ST-18030
1.8
6.0
ST-2500A
130ST-20025
2.0
7.7
130ST-15015
1500
10.0
130ST-23015
2.3
15.0
Parameters
110 series
Rated line voltage V
220
Rated line current A
4
6
Peak torque Nm
12
15
18
Rotor inertia kg·m2
0.54x10-3
0.63x10-3
0.76x10-3
Encoder line PPR
Insulation class
Class F
Protection class
IP65
Use environment
Temperature: -20～+50℃, relative humidity ＜90% (no frost)

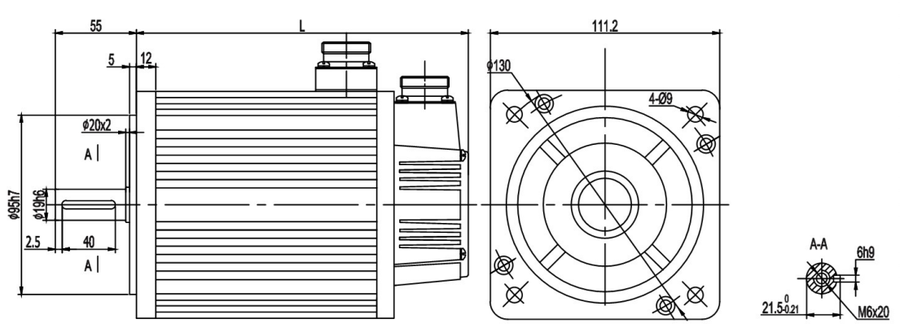

L no brake
189
204
219
L with permanent magnet brake
245
260
275
L with electrical magnet brake
263
278
293
