130 series servo motor

Model

Rated power KW

Rated RPM

Rated torque Nm

Driver

60ST-02030

0.2

3000

0.637

ST-400A

60ST-04030

0.4

3000

1.27

ST-400A

60ST-06030

0.6

3000

1.91

ST-800A

80ST-07530

0.75

3000

2.39

ST-800A

80ST-07320

0.73

2000

3.5

ST-800A

80ST-10025

1.0

2500

4.0

ST-1500A

110ST-12030

1.2

3000

4.0

ST-1500A

110ST-15030

1.5

3000

5.0

ST-1500A

110ST-18030

1.8

3000

6.0

ST-2500A

130ST-20025

2.0

2500

7.7

ST-2500A

130ST-15015

1.5

1500

10.0

ST-2500A

130ST-23015

2.3

1500

15.0

ST-2500A

Model

130 series

130ST-20025

130ST-15015

130ST-23015

Rated power KW

2.0

1.5

2.3

Rated line voltage V

220

220

220

Rated line current A

7.0

6.0

9.5

Rated RPM

2500

1500

1500

Rated torque Nm

7.7

10

15

Peak torque Nm

22

25

30

Rotor inertia kg·m2

1.53x10-3

1.94x10-3

2.77x10-3

Encoder line PPR

2500

Insulation class

Class F

Protection class

IP65

Use environment

Temperature: -20～+50℃,   relative humidity ＜90% (no frost)

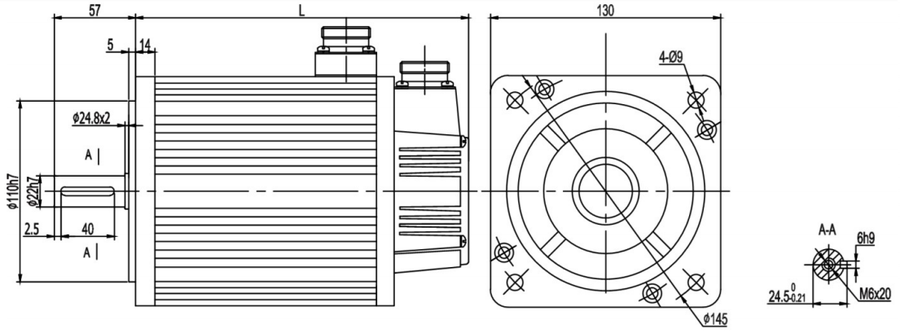

130ST-20025

130ST-15015

130ST-23015

L no brake

192

213

241

L with permanent magnet brake

262

283

311

L with electrical magnet brake

249

294

322
