CC-M4C、CC-M4D  Cutting System

Integrated Arc Voltage Height Controller:
1. The CC-M4D CNC cutting system incorporates an integrated arc-voltage height controller. This controller drives a two-phase hybrid stepper motor to raise and lower the lifter, maintaining the torch at a preset height during cutting. It offers advanced, practical features such as dual-speed positioning, high-speed retraction, and arc-voltage sampling.
2. Special note: The CC-M4C CNC cutting system does not include an integrated arc-voltage height-control function and cannot control the AHG1 height controller via RS485.
Driver Configuration Capability:
1. When paired with our full-digital stepper motor drivers, both the CC-M4C and CC-M4D systems allow on-screen configuration of each axis’s drive current, micro-step resolution, and rated current, and they can monitor the real-time operating status of the drivers.
2. Built on an industrial-grade embedded core, the systems deliver significantly higher processing speeds, rapidly handling every tas
Details

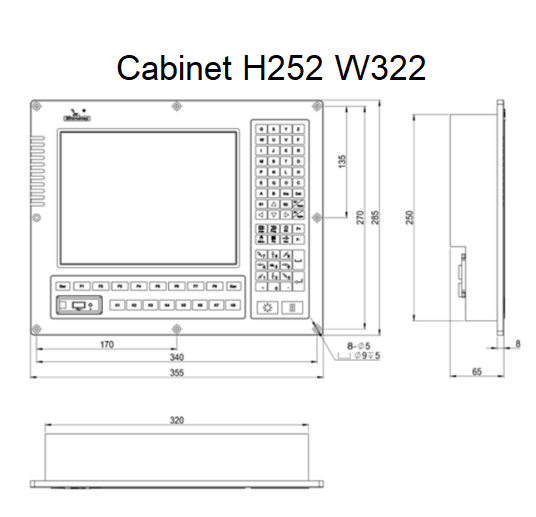

Dimension
Use Guide
Supporting Products

IntegratedArc Voltage Height Controller:

1.The CC-M4D CNC cutting system features a built-in arc-voltage heightcontroller. This unit drives a two-phase hybrid stepper motor to raise/lowerthe torch, maintaining the preset cutting height. It offers advanced, practicalfunctions such as dual-speed positioning, high-speed retraction, andarc-voltage sampling.

2.Important: The CC-M4C CNC cutting system does NOT include an integratedarc-voltage height controller and cannot control the AHG1 height controller viaRS485.

DriverConfiguration Capability:

1.When used with our full-digital stepper drivers, both CC-M4C and CC-M4D systemsallow on-screen adjustment of each axis’s drive current, micro-step resolution,and rated current, while also providing real-time monitoring of driver status.

2.Industrial-grade embedded core delivers a significant boost in computing speed,enabling rapid processing of all tasks—whether loading files,displaying graphics, planning speeds, switching pages, or managing files.

• Processor: Industrial-gradeprocessing chip

• Display: 10.4-inch color TFT LCD

• I/O: 20 opto-isolated inputs, 20opto-isolated outputs

• Communication: 2×RS232,1×RS485,1×USB

• Coordinated axes: 2 axes (expandableto 4)

• Maximum speed: < 24 m/min

• Pulse equivalent: Fully adjustable;electronic-gear numerator & denominator (1–65,535)

• Storage: 4 GB program space, supportsexternal USB drive—no limit on part programs

• Operating temperature: 0 °C – +55°C

• Storage temperature: –40 °C – +60°C
