CH-X4-4D Welding System

Processor: Industrial-grade ARM processing chip
Display: 10.4-inch true-color LCD
Inputs: 16 opto-isolated digital inputs
Outputs: 24 opto-isolated digital outputs
Coordinated axes: 4 axes
Analog: 2xAD, 2xDA
Communication interfaces: 2xRS232, 1xRS485; 1xUSB for file transfer or system upgrade
High-speed counter inputs: 2 channels
Pulse equivalent: Electronic gear numerator/denominator, adjustable from 1 to 65535
Storage: 4GB user-program storage

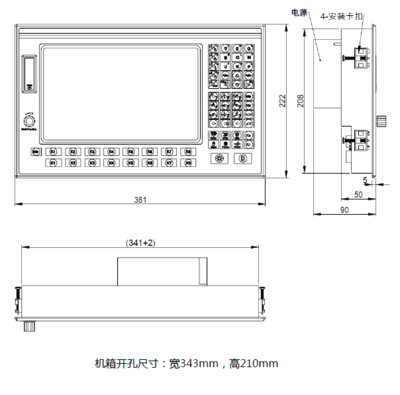

Enclosure dimensions: 361x222x90mm
Operating temperature: 0°C to +40°C
Storage temperature: –40°C to +60°C
