CH-X5-4D Welding System

Basic Specifications
Processor: Industrial-grade ARM chip
Display: 10.4-inch true-color LCD
I/O: 16 opto-isolated digital inputs, 24 opto-isolated digital outputs
Simultaneous axes: 4-axis control
AD/DA: 2-channel analog input (AD), 2-channel analog output (DA)
Communication: 2×RS-232, 1×RS-485, 1×USB
High-speed counter inputs: 2 channels, compatible with 2 encoders
Pulse equivalent: Electronic gear ratio with numerator and denominator adjustable from 1 to 65535
Storage: 8GB user program memory

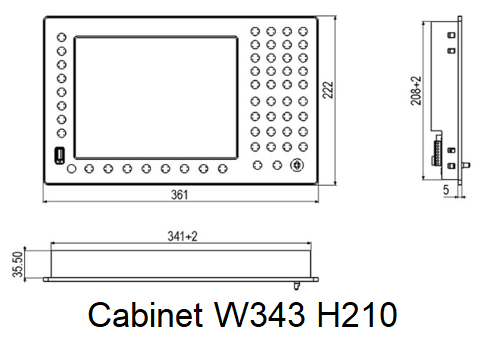

Enclosure size: 361x222x90mm (WxDxH)
Operating temperature: 0°C to +40°C
Storage temperature: –40°C to +60°C
