CH-X5-6D Welding System

Processor: Industrial-grade ARM processing chip
Display: 10.4-inch true-color LCD
Inputs: 24 opto-isolated digital inputs
Outputs: 24 opto-isolated digital outputs
Coordinated axes: 6 axes
Analog: 2xAD (analog inputs), 2xDA (analog outputs)
Communication interfaces: 2xRS-232, 1xRS-485; 1xUSB for file transfer or system upgrade
High-speed counter inputs: 2 channels
Pulse equivalent: Electronic gear numerator/denominator, adjustable from 1 to 65,535
Storage: 4GB user-program storage

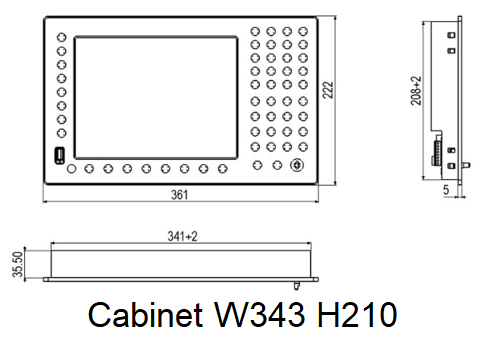

Enclosure dimensions: 361x222x90mm
Operating temperature: 0°C to +40°C
Storage temperature: –40°C to +60°C
